Specification parameter

High-Precision TCK6340 Slant Bed Lathe For Shaft/Disk Machining in Auto/Aero Industries

The TCK6340 slant bed lathe excels in precision machining of shaft and disk parts. Capable of turning diverse screw threads, arcs, cones, and internal/external planes, it handles ferrous and non - ferrous metals with high - speed chip removal.
Ideal for automotive, motorcycle, electronics, and aerospace industries, it efficiently produces high - volume, high - precision components like engine shafts, turbine disks, and electronic device parts. Boasting a machining precision of level 7, it minimizes post - processing and waste. Its 45 - degree slant bed design ensures stability and smooth chip evacuation, while advanced controls enable accurate cutting, making it a reliable choice for complex machining tasks.

SPECIFICATIONS	Units	TCK6340
Swing over bed	mm	400
Swing over cross slide	mm	140
Spindle bore	mm	48
Spindle nose type	-	A2-5
Spindle speed steps	-	Stepless
Spindle speed range	rpm	3500
Turret/tool post	-	Gang type
Tool size	mm	20 x 20
X axis travel	mm	400
Z axis travel	mm	300
Main spindle motor	kw	3.7/5.5
Guide rail type	-	Linear rail
Total power capacity	KVA	9/11
Machine weight	kg	2200

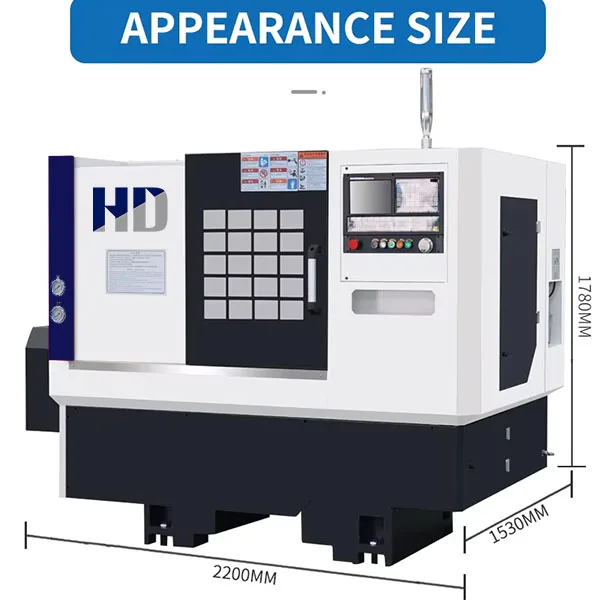

Overall dimension	mm	2200* 1530*1780
Hydraulic tailstock quill taper	-	Mohs #5
Hydraulic tailstock travel	mm	80
Hydraulic tailstock quill traverse	mm	450
Guide rail type	-	Slant bed linear rail
Machine weight	kg	3000
Overall dimension	mm	260018502000

Standard Accessories:

Optional Accessories:

1、Taiwan higher accuracy linear guide ways
2、Taiwan ball screw
3、Hydraulic magazine
4、Taiwan hydraulic chuck
5、Hydraulic tailstock
6、Taiwan hollowed rotary cylinder
7、station hydraulic turret

1. NC System: KND1000Ti, Fanuc Oi Mate-T
2. Main Motor: Servo 11/15 KW
3. Turret: 8 station electric turre
4. Chuck: 8″Non-through hole hydraulic chuck
5. 8″Non-through hole hydraulic chuck (Taiwan)
6. 8″through hole hydraulic chuck(Taiwan)
7.10″Non-through hole hydraulic chuck
8. 10″through hole hydraulic chuck(Taiwan)
9.Chip conveyor
10.Steady Rest
11.Without tailstock
12.Inverter 11 KW
